BAUX Acoustic Flexfelt System

Introducing the most sustainable felt product on the market yet. Ensuring that every stage of the product’s lifetime creates minimal environmental impact. From design and production to use and recycling. Simple. Smart. Fun. Circular.

BAUX Acoustic Flexfelt Screens

Upcycled textile offcuts

The offcuts consist of a 100% polyester based thread, sourced from Ludvig Svensson—resources which normally would have been incinerated.

Low melt polyester fibre

BAUX Acoustic Felt is made out of upcycled textile offcuts combined with a low melt polyester fibre that gives the material its structure.

Made of 100% traceable textile offcuts from Swedish factory floors.

Natural palette of enduring colours, each with a unique identity.

Produced as a single standardised sheet ensure minimal waste.

Cut into 9 versatile sizes to meet all your design needs.

Minimal number of hardware pieces to avoid unnecessary production.

Well-placed grooves for a perfect fit and flexible assembly.

The acoustics of BAUX Flexfelt

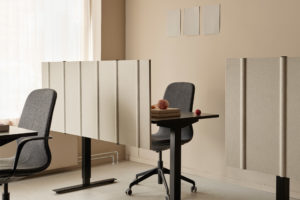

Desk screens

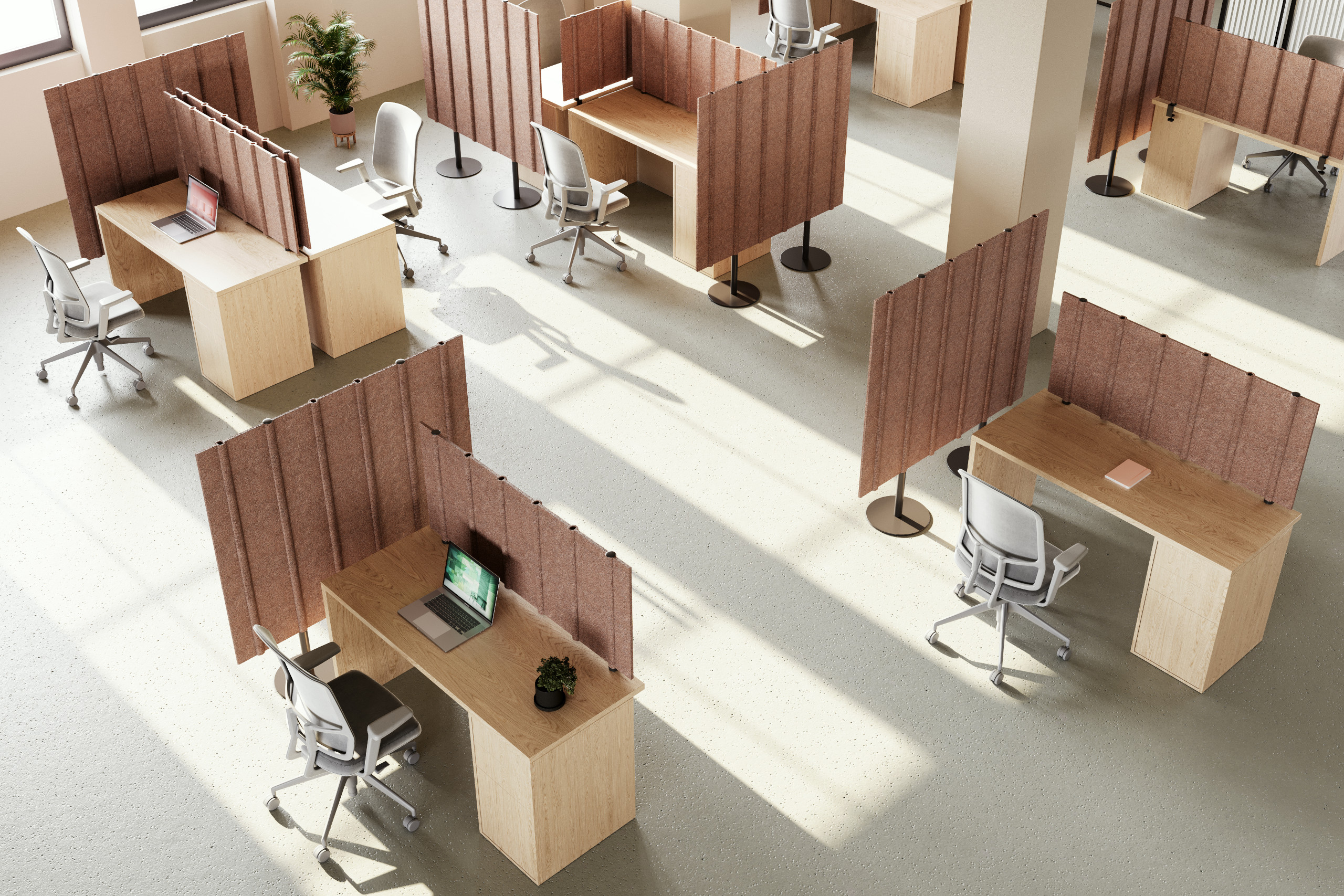

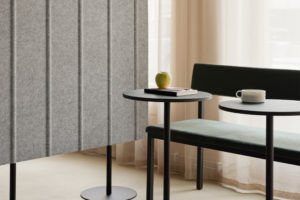

Floor screens

A remarkably versatile system.

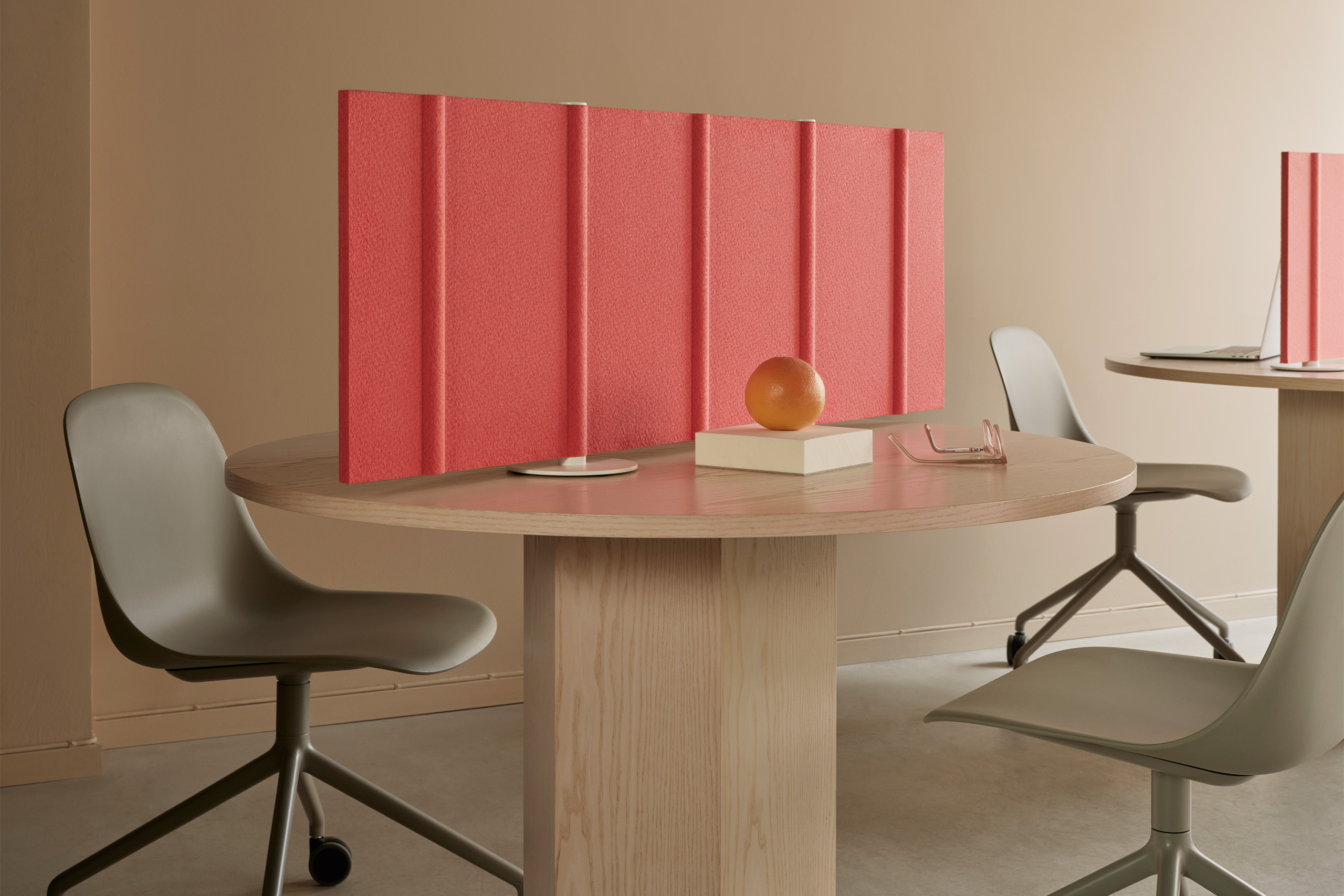

Desk top

Desk side

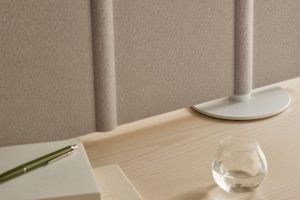

Desk stand

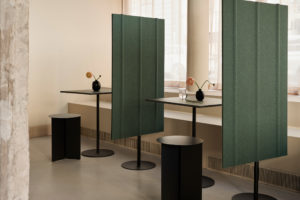

Floor

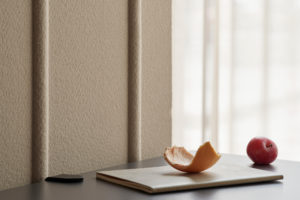

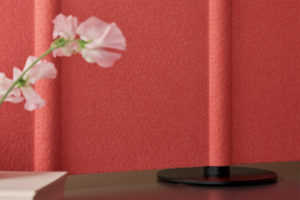

With naturally variegated colours.

As a consequence of the upcycled textiles, the colour schemes of BAUX Flexfelt have naturally variegated identities, a perfect reflection of the material’s diverse origins—and one more loop closed.

Felt colours

Black Mix

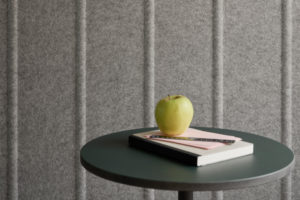

Grey Mix

White Mix

Creating endless interior possibilites.

Tailor smart solutions.

Specifications

Ingredients:

Textile offcuts

Share:
40%.

Function:
Matrix

Certificates:
Oeko-Tex ® Standard 1000 Product Class IV 1.6 1.6 1.6 1.4 1.4 1.21.2 1.0 1.0 Chemicals in dyeing are approved to REACH regulation no. 1907/2006.

Thermoplastic fibre

Share:
50%.

Function:
Binder

Certificates:
CO-PET/PET, 4dn. CAS: 24938-04-3.

Polyester fibre

Share:
10%.

Function:
Binder

Certificates:
PET, 12/13 dn. CAS: 25038-59-9.

Material benefits:

Instead of creating more plastic, we made our felt out of textile offcuts which would have otherwise been sent to the incinerator. Sourced in partnership with The Loop Factory, the offcuts consist of 100% polyester-based threads rescued from Swedish textile factories. To give the acoustic material its structure, they are combined with a low melt polyester fibre.

Tolerances:

True to its upcycled origins, our felt is naturally variegated in colour. Each batch of threads is dyed locally in a closed process that follows Swedish environmental legislation. The chemicals used are approved by REACH for the protection of human health and the environment. The resulting trio of effortless monochromatic hues complement most interiors.

Screen dimensions:

Flexfelt Offcuts 70x40

Width: 700 mm. 27.56″
Height: 400 mm. 15.75″
Thickness: 36 mm. 1.42″

Flexfelt Offcuts 120x40

Width: 1180 mm. 46.46″
Height: 400 mm. 15.75″
Thickness: 36 mm. 1.42″

Flexfelt Offcuts 140x40

Width: 1400 mm. 55.12″
Height: 400 mm. 15.75″
Thickness: 36 mm. 1.42″

Flexfelt Offcuts 70x60

Width: 700 mm. 27.56″
Height: 600 mm. 23.62″
Thickness: 36 mm. 1.42″

Flexfelt Offcuts 120x60

Width: 1180 mm. 46.46″
Height: 600 mm. 23.62″
Thickness: 36 mm. 1.42″

Flexfelt Offcuts 140x60

Width: 1400 mm. 55.12″
Height: 600 mm. 23.62″
Thickness: 36 mm. 1.42″

Flexfelt Offcuts 70x120

Width: 700 mm. 27.56″
Height: 1200 mm. 47.24″
Thickness: 36 mm. 1.42″

Flexfelt Offcuts 120x120

Width: 1180 mm. 46.46″
Height: 1200 mm. 47.24″
Thickness: 36 mm. 1.42″

Flexfelt Offcuts 140x120

Width: 1400 mm. 55.12″
Height: 1200 mm. 47.24″
Thickness: 36 mm. 1.42″

Accessory dimensions:

Table Clamp Side

(Suitable for tables that are 12-50 mm thick.)

Dimensions mm: 320 x 100 x 32 mm
Dimensions inch: 12.6 x 3.94 x 1.26″

Table Clamp Top

(Suitable for tables that are 12-50 mm thick.)

Dimensions mm: 295 x 50 x 32 mm
Dimensions inch: 11.61 x 1.97 x 1.26″

Table stand

Dimensions mm: d150 x h193 mm
Dimensions inch: d5.91 x h7.6″

Floor stand

Dimensions mm: d350 x h891 mm
Dimensions inch: d13.8 x h35.08″

Downloads

Download toolkit

If you want all the files and instructions gathered in one package – look no further! This toolkit contains all the BAUX Acoustic Flexfelt files you will need.

  • How to use toolkit – (.txt)
  • Catalogue, metric – (.pdf)
  • Mounting instructions – (.pdf)
  • BIM / Revit – (.zip)
  • CAD / 3d – (.zip)
  • Texture Files – (.jpeg)

Brochures & catalogues

Catalogue

View and download our latest web brochure. Fewer pages and higher resolution for print.

  • .pdf

3D files - Felt

3D/CAD

For many working professionals, 3D and CAD modelling is an essential tool for visualising design for upcoming projects. Download all Acoustic Felt files that work with AutoCAD, Sketchup, Solidworks among others.

  • .dwg
  • .skp
  • .step

BIM/Revit

Revit files for all acoustic felt products includes detailed elements with BAUX color schedule. For more information see attached .txt in the folder.

  • .rfa

Mounting DWG for Felt products

Mounting file & installation instructions (.pdf) to attach to drawings.

  • .pdf

Textures files - felt

JPG

Texture files can be used to create renderings, in Revit models or as color samples.

  • .jpg

Other

Request Samples

If you are interested in getting colour samples for your upcoming project, let us know!

Contact your local representation.

Contact us.

Certificates

Sustainability is a fundamental part of our core business model. Designing the sustainable acoustic building materials for tomorrow means producing environmentally friendly materials today. Find out more on our sustainability and certificate site.

Lifecycle

Forest Stewardship Council
Endorsement of Forest Certification
The Health Product Declaration
Environmental Product Declaration

Indoor air VOC

Indoor Air Comfort GOLD (EU)
Indoor Air Comfort (US)

Other

CE – For Safety, Health and environment
Byggvarubedömningen
Sunda Hus Certification
Google Portico
